Door Closers

DOOR CLOSERS

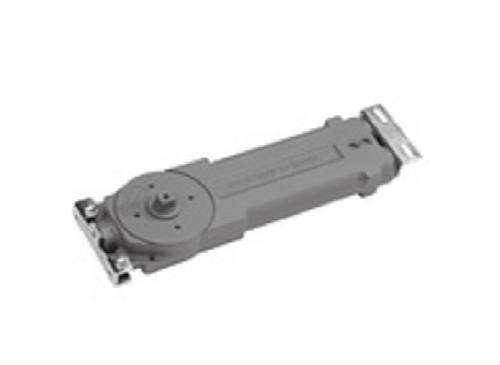

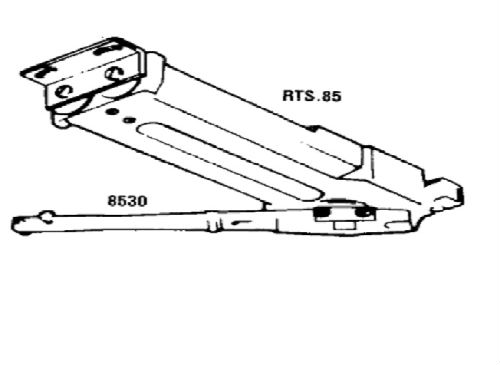

RTS 85 SERIES Concealed double action overhead door closer, designed to fit inside standard hollow 100 x 45mm box section.

The DORMA RTS 85 offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door. The majority of the preparation can be accomplished by the fabricator prior to installation, leaving minimal on-site work.

RTS 85/3 Transom body only.  Type 3 Non hold open.

RTS 85/3/90 Transom body only. Type 3 Hold open 90 degree

Code                     Description
EN0871                 RTS 85/3/90 Door Closer
EN0872                 RTS 85/3 Door Closer

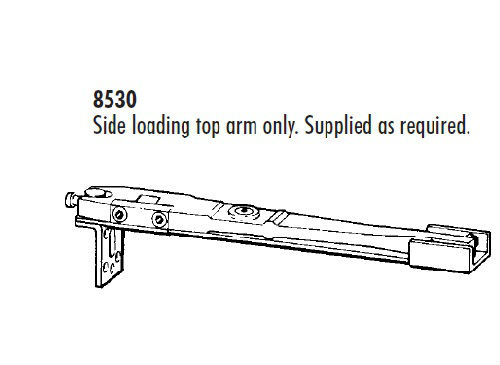

EN0435                 8530 Side Load Top Arm

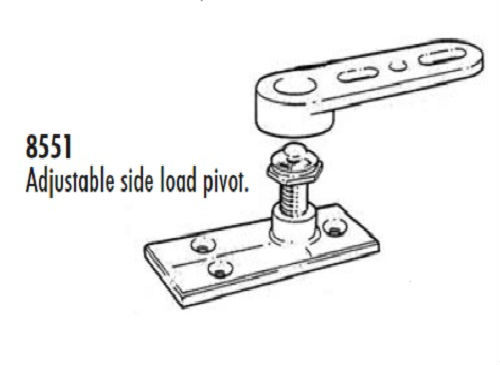

EN0441                 8551 Adjustable Side Load Pivot

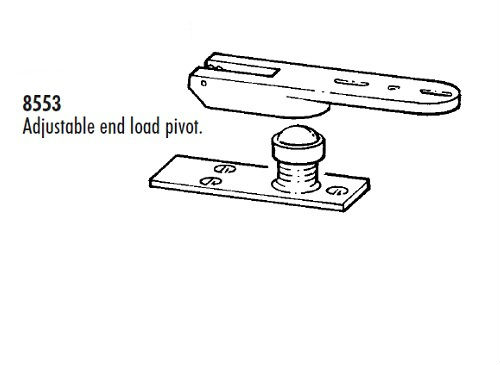

EN0442                 8553 Adjustable End Load Pivot

---
